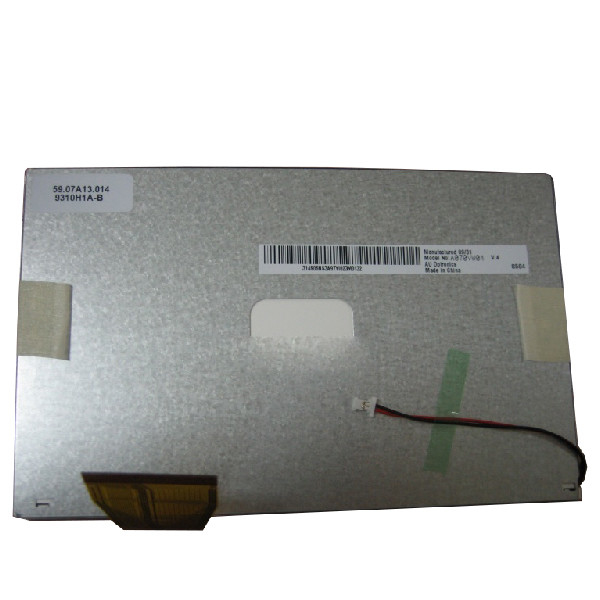

A070VW04 V4 800*480 133PPI LCD SCREEN
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | AUO |
| মডেল নম্বার: | A070VW04 V4 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
|---|---|
| মূল্য: | আলোচনা সাপেক্ষে |
| প্যাকেজিং বিবরণ: | আসল প্যাকেজিং/প্রচলিত প্যাকেজিং বক্স |
| ডেলিভারি সময়: | 7 দিন |
| পরিশোধের শর্ত: | টি/টি, ওয়েস্টার্ন ইউনিয়ন |
| যোগানের ক্ষমতা: | প্রতি মাসে 100000 ইউনিট/ইউনিট |
|
বিস্তারিত তথ্য |
|||
| মডেল P/N: | A070VW04 V4 | তির্যক আকার: | 7.0" |
|---|---|---|---|
| রেজোলিউশন: | 800(RGB)×480, WVGA 133PPI | সক্রিয় এলাকা: | 152.4(W)×91.44(H) মিমি |
| রূপরেখা(মিমি): | 164(H)×103(V)×5.4(D) মিমি | উজ্জ্বলতা: | 250 cd/m² (টাইপ।) |
| দেখার কোণ: | 65/65/50/65 (টাইপ) (CR≥10) | জন্য ডিজাইন করা: | ডিজিটাল ফটো ফ্রেম পোর্টেবল ডিভিডি প্লেয়ার MP3 PMP |
পণ্যের বর্ণনা
A070VW04 V4 800*480 133PPI LCD SCREEN
A070VW04 V4 Product details :
| AUO LCD SCREEN A070VW04 V4 | |
| Panel Brand | AUO |
| Panel Model | A070VW04 V4 |
| Panel Size | 7.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.6(W)×93.64(H) mm |
| Outline Size | 164(H)×103(V)×5.4(D) mm |
| Treatment | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 65/65/50/65 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M 56% NTSC |
| Lamp Type | WLED [3S7P] , 10K hours, no driver |
| Frequency | 55Hz |
| Panel Weight | 154±14g |
| Designed For | Digital Photo Frame Portable DVD Player MP3 PMP |
| Touch Panel | Without |
| Signal Interface | 60 pins Parallel RGB (1 ch, 8-bit) + SPI , FPC |
| Input Voltage | 3.3/11/18/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating temperature: -10 ~ 60 °C ; Storage temperature: -20 ~ 70 °C |
| A070VW04 V4 800*480 133PPI LCD SCREEN | |
