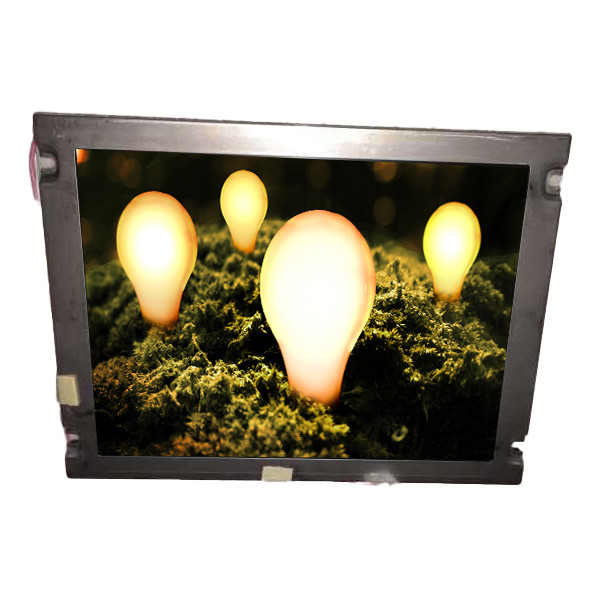

Original T-51750GD065J-FW-ADN 6.5 inch LCD Display Screen Panel for Industrial Equipment
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | OPTREX |
| মডেল নম্বার: | T-51750GD065J-FW-ADN |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
|---|---|
| মূল্য: | আলোচনা সাপেক্ষে |
| প্যাকেজিং বিবরণ: | আসল প্যাকেজিং/প্রচলিত প্যাকেজিং বক্স |
| ডেলিভারি সময়: | 7 দিন |
| পরিশোধের শর্ত: | টি/টি, ওয়েস্টার্ন ইউনিয়ন |
| যোগানের ক্ষমতা: | প্রতি মাসে 100000 ইউনিট/ইউনিট |
|
বিস্তারিত তথ্য |
|||
| মডেল P/N: | T-51750GD065J-FW-ADN | তির্যক আকার: | ৬.৫" |
|---|---|---|---|
| রেজোলিউশন: | 640(RGB)×480, VGA 122PPI | সক্রিয় এলাকা: | 132.48(W)×99.36(H) মিমি |
| আউটলাইন আবছা.: | 158(W)×120.36(H) মিমি | আলোকসজ্জা: | 400 cd/m² (টাইপ।) |
| ওজন: | 190 গ্রাম (প্রকার) | জন্য ডিজাইন করা: | শিল্প |
পণ্যের বর্ণনা
Original T-51750GD065J-FW-ADN 6.5 inch LCD Display Screen Panel for Industrial Equipment
T-51750GD065J-FW-ADN Product details :

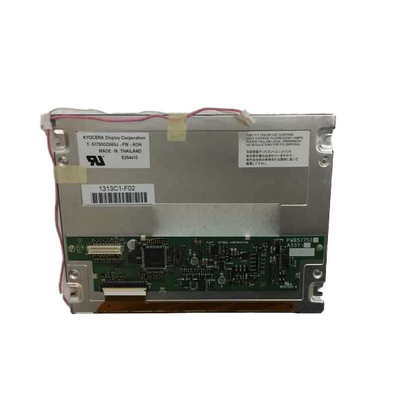

| Kyocera LCD SCREEN T-51750GD065J-FW-ADN | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | T-51750GD065J-FW-ADN |
| Panel Size | 6.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 640(RGB)×480VGA 122PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 132.48(horizontal)×99.36(vertical) mm |
| Outline Size | 158(horizontal)×120.36(vertical) mm |
| Surface | Antiglare (Haze 9%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 55/55/30/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 15/16 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 39% NTSC |
| Lamp Type | CCFL [2 pcs] , 50K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 190g (Typ.) |
| Designed For | Industrial |
| Signal Interface | 31 pins Parallel RGB (1 ch, 6-bit) , terminal |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating temperature: -25 ~ 75 °C ; Storage temperature: -25 ~ 85 °C |
| Original T-51750GD065J-FW-ADN 6.5 inch LCD Display Screen Panel for Industrial Equipment | |
T-51750GD065J-FW-ADN Buyer notification:
1. Our company can purchase other electronic accessories and LCD screens for you. You should clearly tell us the product grade, suffix, package, etc.
2. Our company is an entity management organization. We have many levels and cannot upload them all. It will be much cheaper to buy in large quantities. If you don't agree with our price, please contact me.
3. Avoid screen damage or loss. Please check the parts carefully when you receive them. If there is a problem, please do not log in. Contact me immediately. Let's solve this problem together.
T-51750GD065J-FW-ADN Shipping and Package :
T-51750GD065J-FW-ADN Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
T-51750GD065J-FW-ADN Guarcntee:
1) All items will be strictly tested and shipped with strong package.
2) We have warranty for every item.
3) We will do our best to solve any possible problem for you after sale. Please contact us.
T-51750GD065J-FW-ADN Returns:
Returns accepted. Item must be in original condition. And you should pay the additional shipping fees incurred and the items returned should be kept in their original state.
T-51750GD065J-FW-ADN FAQ:
Q: Can you give me a discount if I need a large quantity of T-51750GD065J-FW-ADN ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of T-51750GD065J-FW-ADN via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods T-51750GD065J-FW-ADN ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of T-51750GD065J-FW-ADN to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
